CL-342 Step Light by Corona Lighting
Material
Brass
Finish
Antique Bronze. Natural toning process. AB finish will vary due to the artistic process
AB- Antique Bronze
NB- Natural Brass
SI- Silver Plated
GM- Gun Metal

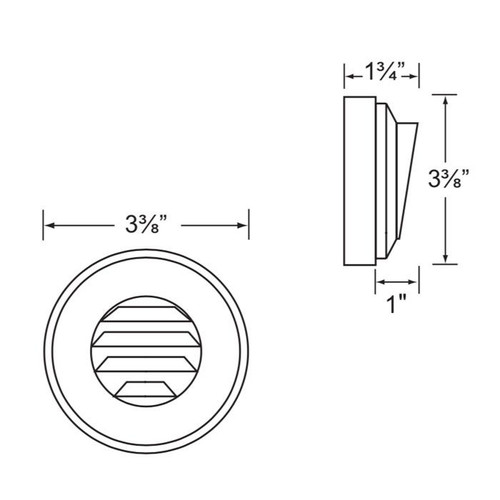

Dimensions
3.83" W x 1"H x 3.83" L
Housing
Corrosion-resistant cast brass-
Faceplate
Cast brass, fitted to housing with silicone "O" ring gasket.
Lens
Frosted and heat resistant flat glass.
Socket
Top grade bi-pin socket.
Light Source
12V T3 halogen, 20W max.
L-20T3 (20w) standard
Wiring
The fixture is prewired with an 18-2 SPT1-W direct burial cord. Wire connectors sold separately.
Silicone-filled wire nut (CX-854) or quick-locking wire connector (CX-LOC) is available through Corona Lighting.
Gasket
Silicone "O" ring seals faceplate to housing providing weather tight protection.
Mounting
Surface-mounted including mounting plate. For outdoor use only
Warranty
Limited lifetime warranty on fixture against manufacturer's defects.
Led Options
Base: Wedge, Beam spread: 180° FL
2700k - Rated hours: 12,000
L-EDT5-1.5W lumen: 120
Base: Bi-Pin , Beam spread: 15° SP
Rated hours: 25,000
L-EDT3-2.5W lumen: 240
Note
Voltage ranges for the fixture are:
LED lamps: 8-21V
Halogen lamps: 11-12.5V
Proper greasing and lubrication threaded parts are suggested for installation.
A Remote 12 Volt transformer is required.
